Top Plate, Hardyard Series

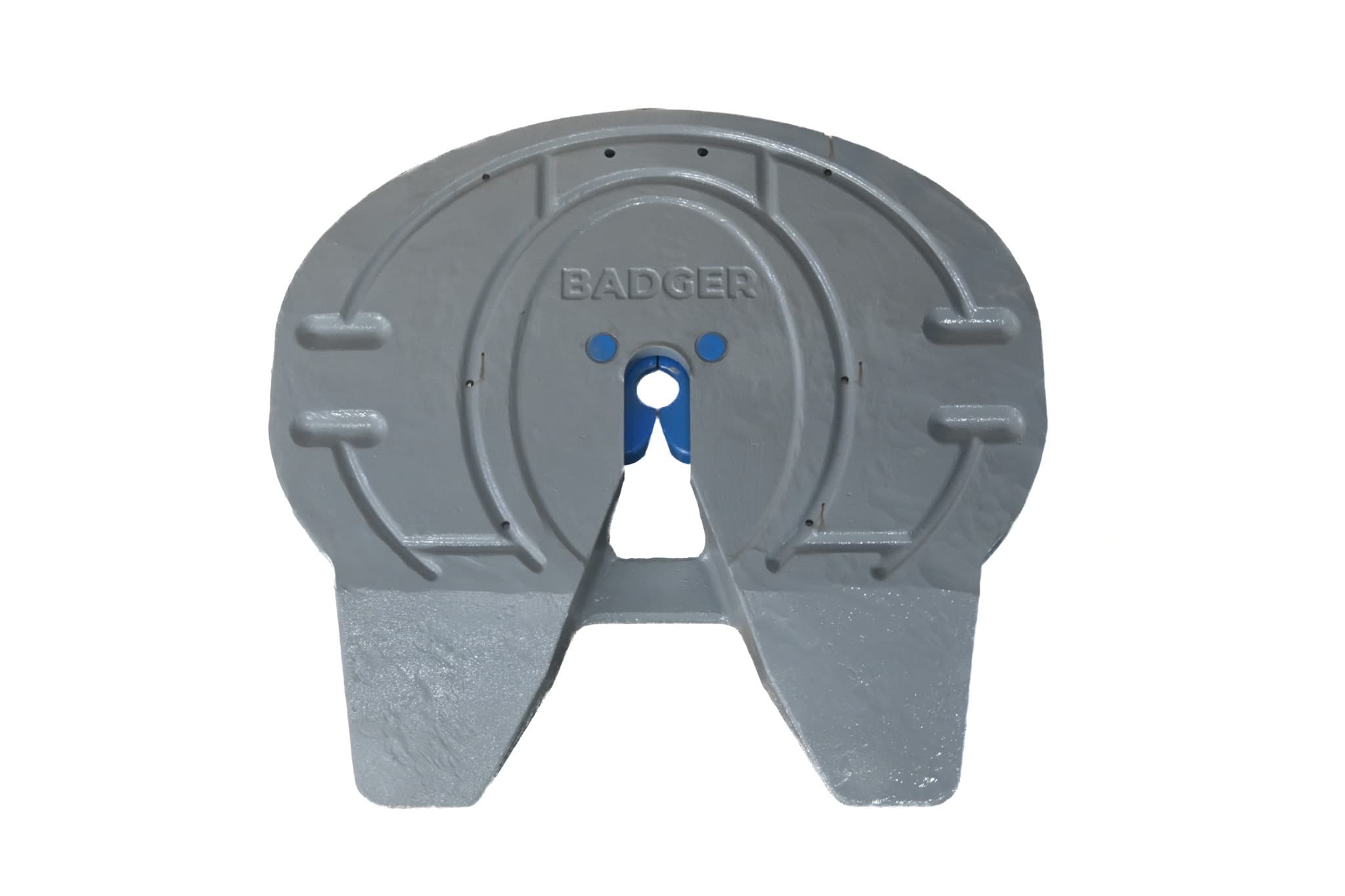

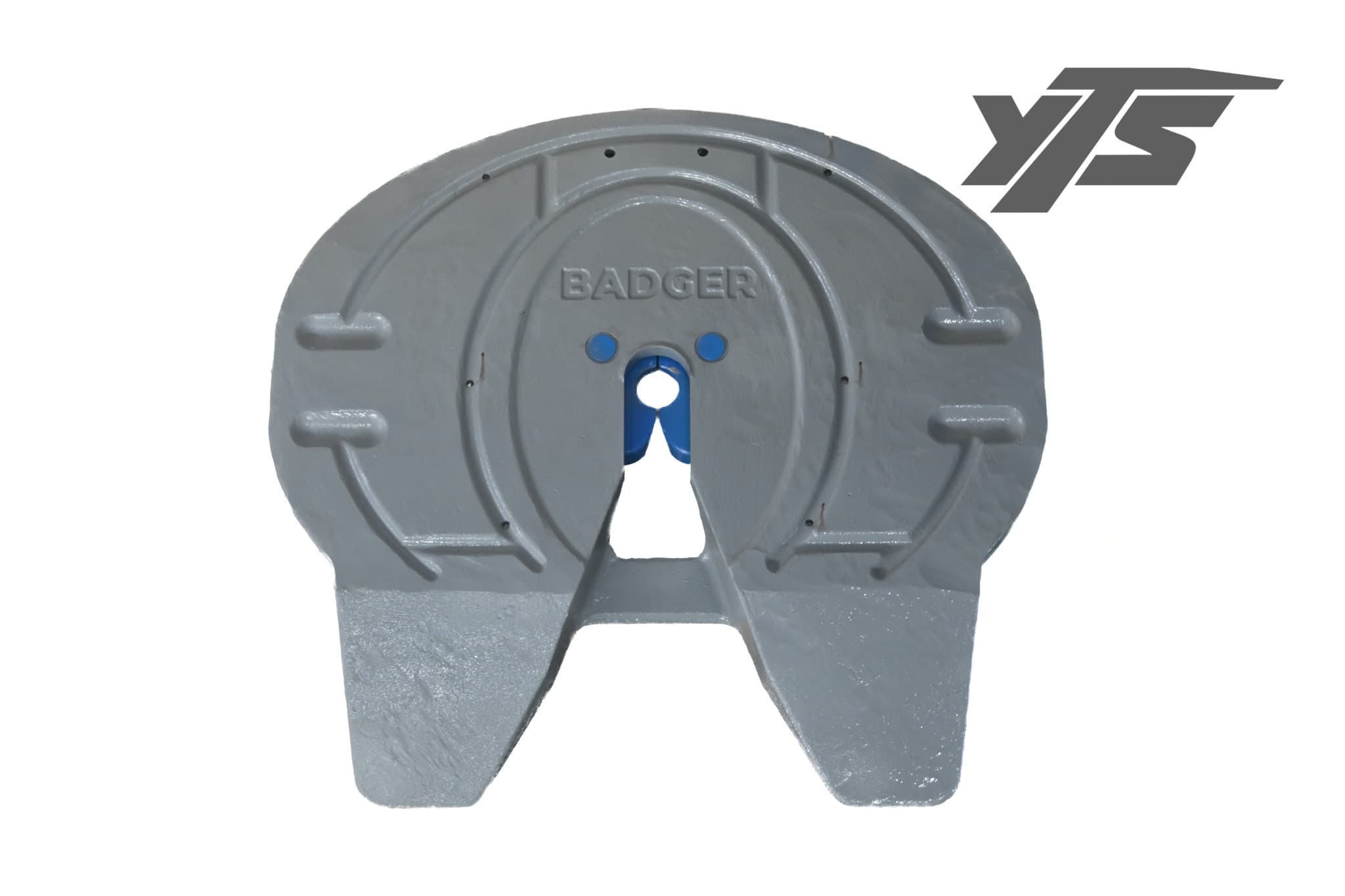

Badger HARDYARD Series Fifth Wheel (Part #30000)

Part #30000 is the Badger HARDYARD Series fifth wheel, a heavy-duty fifth wheel designed specifically for terminal tractors and yard trucks. Engineered with the shop technician in mind, the HARDYARD eliminates common points of failure found in industry alternatives, featuring a thicker top plate and stronger rib structure for demanding yard operations. It is fully rebuildable, extending service life and reducing long-term replacement costs.

Key Features

• Cam plate design prevents the cam bolt from backing out

• Fully integrated spring return — no retaining plates or added failure points

• Integrated secondary automatic lock for added coupling security

• Smooth rib transitions for maximum shock absorption and reduced stress fatigue

• High-strength steel alloy construction with thicker top plate and ribs than competitors

• Fully rebuildable for increased longevity

Specifications

• Maximum vertical rating: 85,000 lb

• Horizontal pull rating: 155,000 lb

• Kingpin size: 2"

Related Parts

• Ultra-Crimp 6 air cylinder (Part #30016) – actuates the locking mechanism

• FW35TT complete rebuild kit (Part #74000)

• Hydraulic Cylinder 5 (Part #80001)
